Low and ultra- low losses distribution transformers, range ECO-T

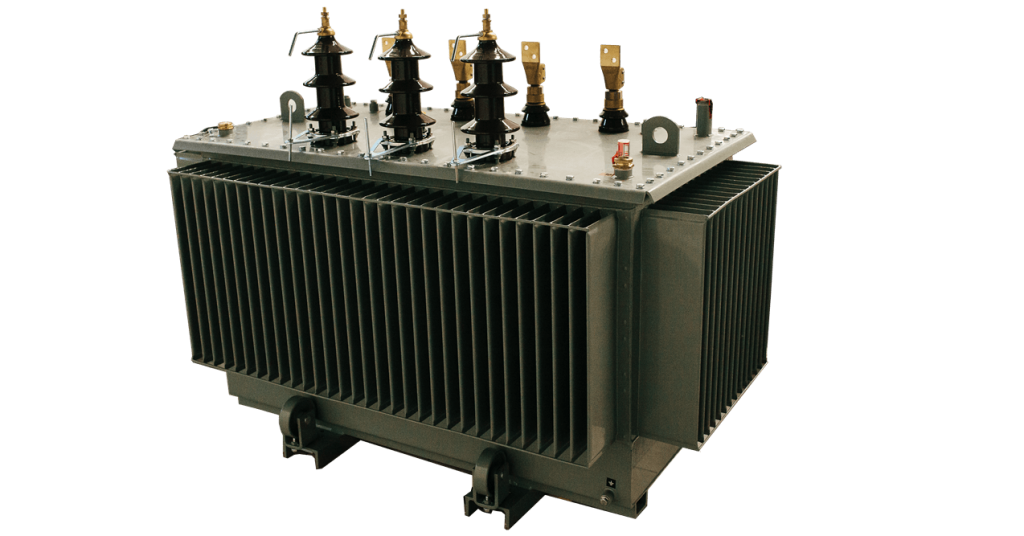

Through investments in production capacities and relying on the know-how and creativity of our engineers, EnergoBit has launched a new range of products: oil-insulated distribution transformers ECO-T.
These are manufactured in the newest and most modern transformers production facility in Romania.
Based on EnergoBit’s experience in the production of electrical equipment the new ECO-T oil insulated distribution transformers feature the following advantages:
- Complete range of transformers, standard or custom-made, EnergoBit being the sole domestic producer of amorphous core transformers (ultra-low losses)
- Top quality insured through the most modern production facility with the latest technology
- Short delivery time
- Warranty and post-warranty services
General characteristics
- Rated voltage: up to 24kV
- Frequency: 50Hz
- Suitable for: indoor / outdoor
- Three phase
- Hermetically sealed
- Copper or aluminum windings
- ONAN
Constructive types
- Distribution transformers with ultra-low losses (with amorphous cores) A0-Ak
- Distribution transformers with low losses: A0-Bk
- Distribution transformers with ultra-low losses (for pole/ground mounting): A0-Ck
- Normal losses: C0-Ck
- Special transformers for PV Parks, Wind Farms, Micro Hydro Power Plants
Transformers range
| Sn (KVA) | 50 | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 |
| AA Group | ||||||||||
| A0 | 90 | 145 | 210 | 300 | 430 | 600 | 650 | 770 | 950 | 1200 |
| Ak | 750 | 1250 | 1700 | 2350 | 3250 | 4800 | 6000 | 7600 | 9500 | 12000 |
| AB Group | ||||||||||
| A0 | 90 | 145 | 210 | 300 | 430 | 600 | 650 | 770 | 950 | 1200 |
| Bk | 875 | 1475 | 2000 | 2750 | 3850 | 5600 | 7000 | 9000 | 11000 | 14000 |
| AC Group | ||||||||||
| A0 | 90 | 145 | 210 | 300 | 430 | 600 | 650 | 770 | – | – |
| Ck | 1100 | 1750 | 2350 | 3250 | 4600 | 6500 | 8400 | 10500 | – | – |
| CC Group (just for pole mounting) | ||||||||||
| C0 | – | – | 300 | 425 | 610 | – | – | – | – | – |
| Ck | – | – | 3102 | 3250 | 4600 | – | – | – | – | – |
